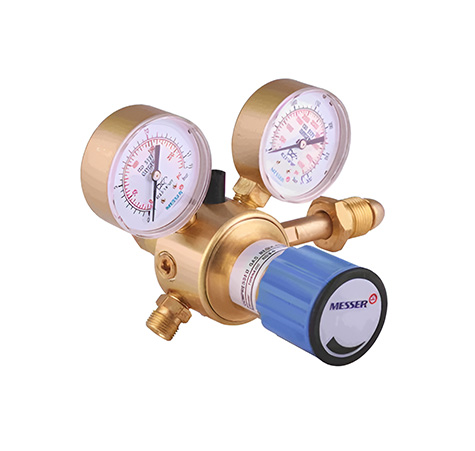

Pressure Regulators
Quality of the highest level
At the start of every gas control path pressure regulators are the decisive connection between the gas supply and the torch. Depending upon pressure, volumes, connections required or the type of gas, various aspects must be considered. A technically faultless and simultaneously safe take-up point has the highest priority here. With our many years of experience in the field of oxyfuel technology we offer you the right solution for your needs.
We would be happy to consult with you to find together the optimum regulator for you.
Model Selection
-
Tornado
-
Typhoon
-
Liliput
SPM WELD METAL
Key Features
Designed in Germany.
Made out of high quality forged brass.
Reliable, compact & internationally proven.
S.S. sintered central micro filter (for Tornado).
Maintenance free.
Accurate control.
High operator safety.
Strong, durable & safe.
Sintered inlet filter.

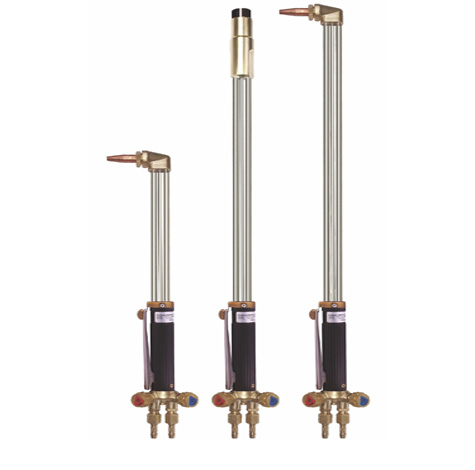

Cutting Torch - Proficut H
The New range of ProfiCut H heavy duty cutting torches for nozzle mix (3seat) nozzles continues the tradition of Messer torches with the quality and reliability which is synonymous with Messer. ProfiCut H is proven design incorporating the latest technical features necessary to meet the ever - changing applications and requirements of the hand cutting market.
Its ergonomic and modern functional design permits steady, effortless control by hand and its balanced weight enables the operator positive and comfortable working conditions for a continuous operation.
The cutting and gouging torch range Proficut H is the low cost alternative for high quality value.
We would be happy to consult with you to find together the optimum cutting for you.
SPM WELD METAL
Advantage
| Absolute Safety | Balanced Weight | Accurate | Tough | Durable | Excellent Cutting Quality |
|---|---|---|---|---|---|
| High resistance to back fires | Comfortable working for continuous operation | Precise flow rates | 900 Solid Forged Brass Head | Rugged design ensures maximum strength | Reduced Post Cut Grinding Operation |
| - | Torch weight 1050 gms., length 510mm | Heavy duty applications even at low cylinder pressures | - | - | - |
| - | - | Cutting range : 3 - 300mm | - | - | - |

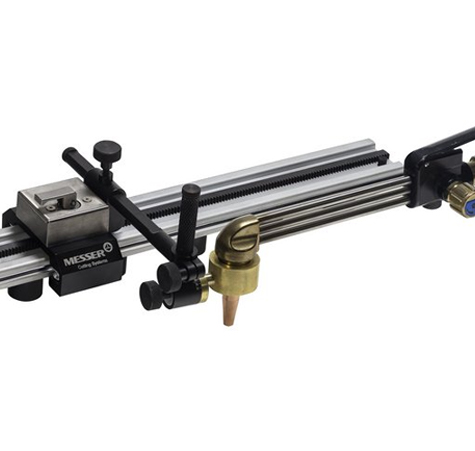

Stable Cut
Mechanical Cutting Guide for Hand Cutting Torches
Thanks to the integrated rack and pinion mechanism, very precise straight cuts can be made horizontally, vertically and even overhead at the same cutting speed.
Advantage
Exact straight cuts horizontally, vertically and overhead
Cut in both directions
Bevel cuts up to 60 ° possible
One-handed operation
Rework reduced to a minimum
Controlled cutting speed through rack and pinion mechanics
Features
Strong magnets fix variable guide rails stably on the workpiece
Two torch holders: for Ø 27 mm torch head and for gas-mixing nozzles
Variable rail length 38/61/91/122 cm
Scope of delivery: guide carriage with rod, guide rail
For metal construction / shipbuilding / container construction
SPM WELD METAL
You can use the StableCut with the following Hand Cutting Torches
STARLET
STAR
STARCUT
EAT

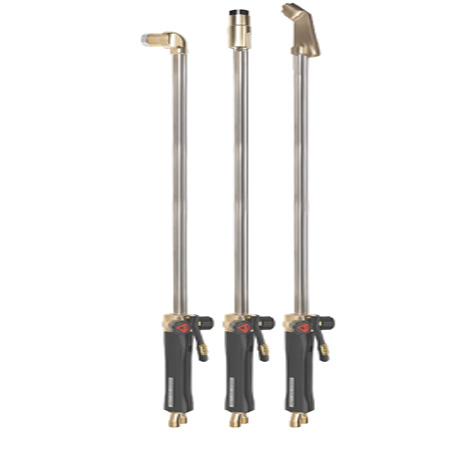

StarCut Cutting Torch
We would be happy to consult with you to find together the suitable torch for you.
Advantages
High backfire resistance through injector
High consumable durability and resistance to environmental influences due to brass valve body
Better ability to dose the Oxygen due to special concept of the valve actuator
High stability due to the triangular arrangement of the Stainless Steel pipes
High flow rates and easy adjustment of the media through the appropriate design of the monoblock valves
Better handling through ergonomic design, high operating comfort
Low spare parts stocks required thanks to modular system
SPM WELD METAL

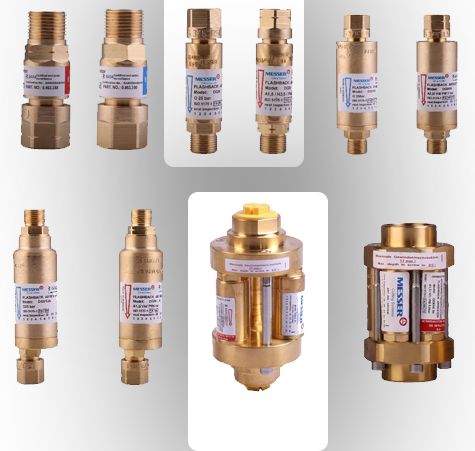

Safety Devices (Flashback Arrestor)
World Class Safety Equipment
A safety device is absolutely necessary at every gas take-up point. Messer Cutting Systems offers you a comprehensive program to DIN EN 730-1, DIN EN 561, as well as to ISO 5175 and ISO 7289. Regardless of whether they are for a cylinder pressure regulator, as outlet for a gas supply panel or directly on a hand or machine torch, the safety devices from Messer ensure your safety. The combination of gas shut-off valve (NV), flame arrestor (FA) and thermal gas cut-off system (TV) offer you the optimum protection against flash-backs and gas reverse flow.
We would be happy to consult with you to decide together which safety units are ideal for you.
*BMCG - Bharat Metal Cutting Gas
SPM WELD METAL
Model Selection

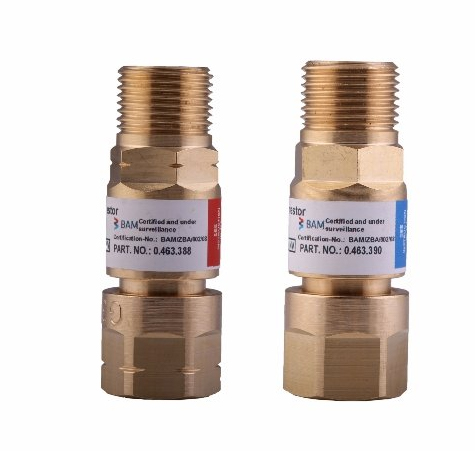

GG
Torch end Flashback Arrestor.

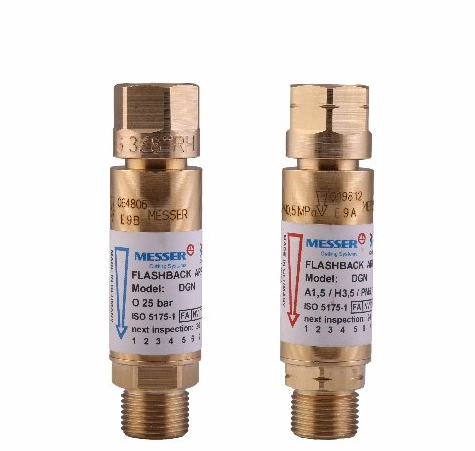

DGN
Regulator end Flashback Arrestor.

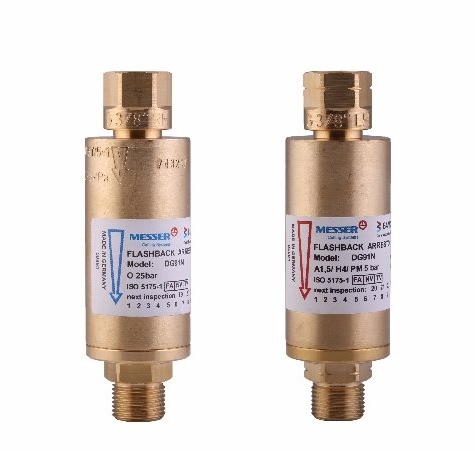

DG 91N
Regulator end Flashback Arrestor.

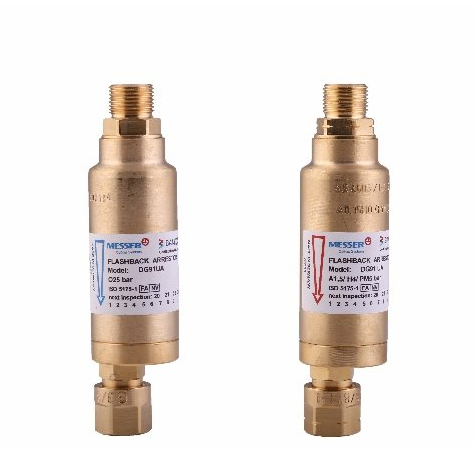

DG 91UA
Regulator end Flashback Arrestor.

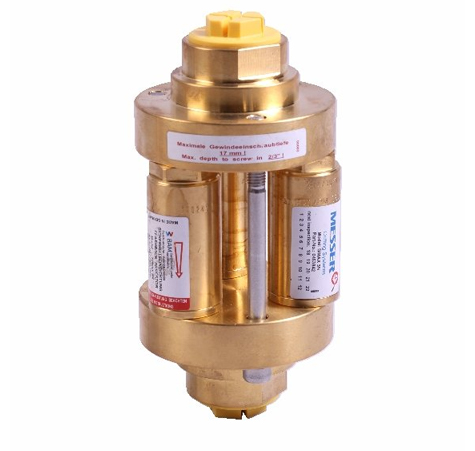

SIMAX 3
Flashback Arrestor for gas Manifold.

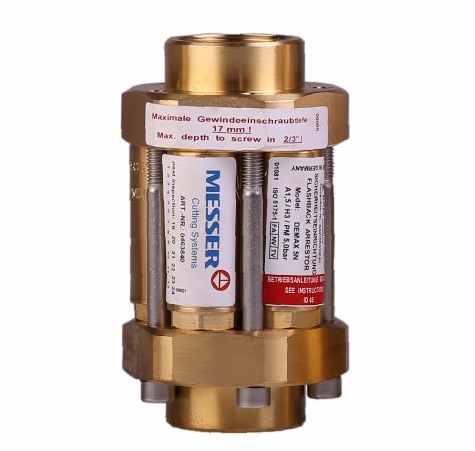

DEMAX
Flashback Arrestor for gas Manifold.

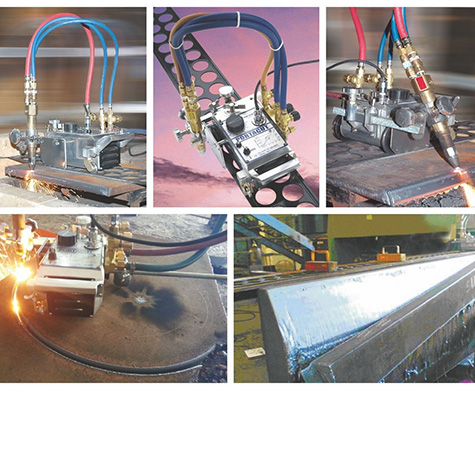

Porta Cut
Semi Automatic Gas Cutting Machine
PortaCut is a semi-automatic gas cutting machine. Machine can cut using Oxygen + Acetylene or Oxygen + Propane / BMCG* gases. This is a compact motor driven gas cutting machine, which can be used for cutting straight, bevel as well as circle cutting. A steel track is used to provide stable motion to the machine. Two or more tracks can be combined through dove-tail joints for longer cuts. Two torches can be used for strip cutting applications.
BMCG* - Bharat Metal Cutting Gas
Key Features
-
Portable gas cutting machine.
-
40% higher productivity than conventional machine
-
60% less post cutting grinding operation.
-
Cutting capacity up to 300mm thickness.
-
Strip cutting range: 80-300mm.
-
Circle cutting: 150-2400mm diameter.
-
Cutting speed: 50-800 mm/min.
-
Capable for straight and bevel cutting (circle & multi-bevel cutting also possible) *.
-
Functions control by forward/off/reverse switch.
SPM WELD METAL

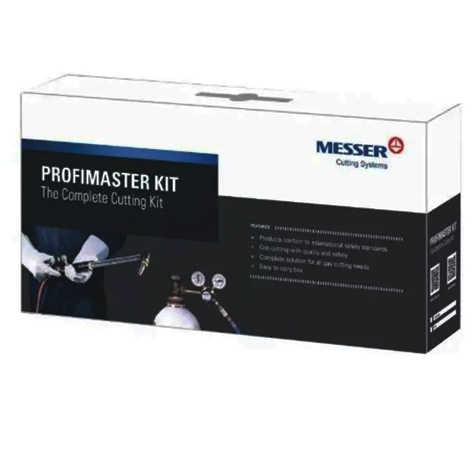

Profimaster Kit
Introducing the Messer Oxygen & Acetylene Gas Profimaster Kit, 80830951, a must-have for welding enthusiasts. This welding accessories set is a perfect addition to your welding arsenal. The Messer brand is known for its superior quality and reliability, and this kit lives up to those expectations.
The package includes a range of essential items to enhance your welding experience. The regulator Tornado R/B-O 200-10 Bar ensures precise gas control, allowing you to achieve optimal welding results. The cutting nozzle 3-6 ANME1/32 provides clean and accurate cuts, while the ProfiCut HB 8607B-A/PMY Bottom Lever ensures ease of use and maximum precision.
Safety is a top priority when it comes to welding, and this kit includes all the necessary safety equipment. The spark lighter with three flints allows for quick and easy ignition, while the nozzle cleaner ensures proper maintenance of your equipment. The flashback arrestor DGN - Oxygen G 3/8 RH provides added protection against dangerous flashbacks.
To protect yourself during the welding process, we also include welding hand gloves that are 12 inches in length for optimal coverage. Additionally, cutting goggles with a rectangular shape (WG-2414FF) provide excellent eye protection while allowing for clear vision.
SPM WELD METAL
specifications
| Brand | Model | Dimensions LxWxH | Weight |
|---|---|---|---|
| Messer | 80830951 | 10x10x10 cm | 400 gm |

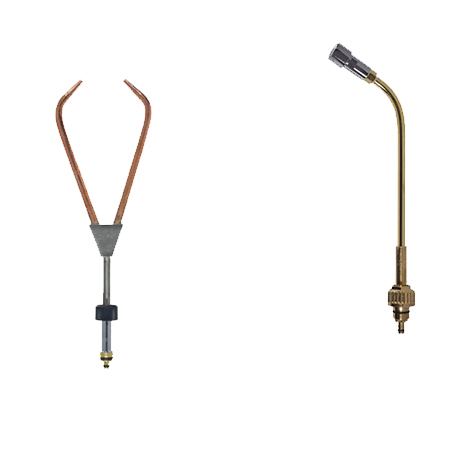

Welding & Brazing
Messer Cutting Systems offer you a comprehensive range of different welding, brazing and heating inserts to suit our handles and machine shafts. You will find the appropriate solution from us, depending upon the area of application, gas available, required performance range or geometry needed.
SPM WELD METAL
Model Selection

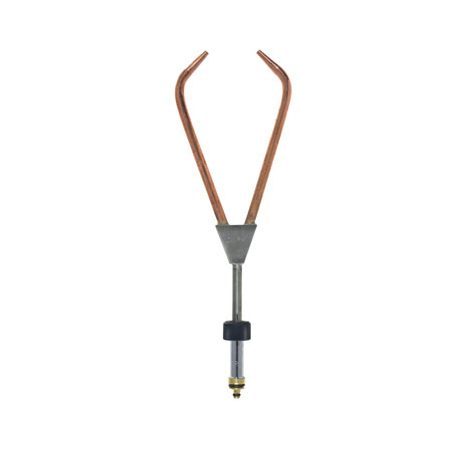

Forked Torch MINITHERM Z-PMYE
Two single jet Copper heating nozzles Various versions for the gas combinations Propane, Methane, MAPP, Ethylene and Oxygen (PMYE) or Acetylene, Hydrogen and Oxygen (AH).

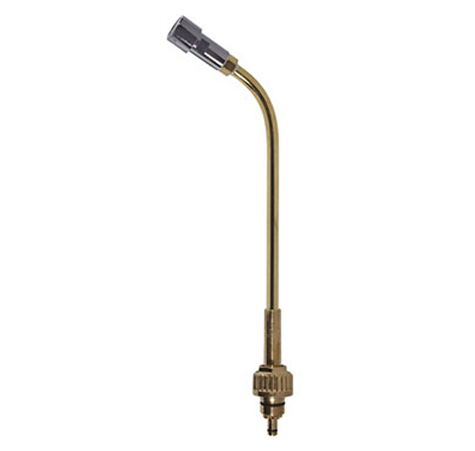

Brazing and heating insert STARLET / STAR-FB-A
Low noise multi-jet nozzle (Chrome plated). Noise level up to size 8 under 85 dB(A). For Acetylene and Oxygen. According to size will fir STARLET or STAR handles.
